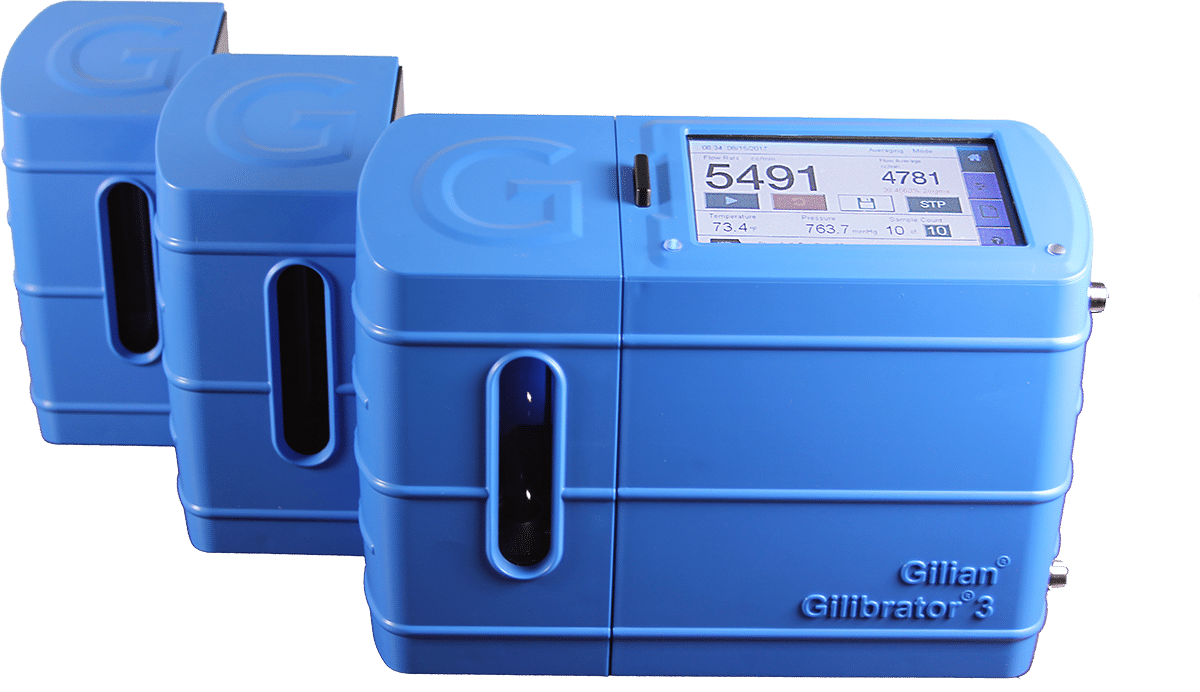

Gilian Gilibrator 3 Calibrator

Smart and Stable, +/- 1% Accuracy

True Primary Standard (NIOSH) Dry Cell Calibrator – Convenient and Accurate With Stable Back Pressure

The Gilian^® Gilibrator^® 3 sets the standards bar higher for air flow calibration. Designed with the user in mind, it delivers exceptional performance, reliable results, and an intuitive user experience.

Primary Air Flow Calibrator: Meets NIOSH standards and provides NIST traceability through Sensidyne’s ISO 17025 accredited laboratory.
Superior Accuracy: Delivers live, instantaneous flow measurement accurate within +/- 1% of reading.
Pulse-Free Valve Technology: Patented* design minimizes airflow disturbance for superior calibration integrity (*US Patent No. 11,385,096).
Modular Design: Quickly swap dry flow cells (low: 5-450 cc/min, standard: 50-5000 cc/min, high: 1 LPM-30 LPM) for a wide range of calibrations.
User-Configurable: Choose between continuous or averaging modes, define statistical parameters, and select engineering units.

Calibrate Anywhere, Anytime

The Gilibrator 3 is built for portability and efficiency.

Advanced Rechargeable Battery: Delivers up to 3 hours of continuous flow or 8 hours of use with minimal brightness.
Rugged Construction: Designed for field use and harsh environments.
Easy Data Management: Store and transfer calibration data via on-board memory (100 events), SD card (bitmap & .csv export), or Gilian CONNECT Pro PC software.

Key Features:

StablFlow^TM Technology: Provides constant low back pressure for minimal airflow disturbance during calibration.

Fixed Sensing Array: Eliminates misalignment issues and ensures reliable data throughout calibration.
Touch Screen Color Display: Intuitive interface with auto-adjust for clear visibility in any lighting condition.
Data Logging and Reporting: Generate comprehensive calibration reports with sample information, instrument settings, and individual results.
SmartCal^TM Compatibility: Enables hands-free adjustments when used with GilAir Plus pumps.

Contact our Experts

Reach out to Our Expert Team for Tailored  Safety Solutions and Technical Guidance.

800-451-9444

info@sensidyne.com

Flow Ranges Low – 5-450cc/min, Standard 50-5000cc/min, High 1-30LPM

Volumetric Accuracy – 1% of reading§

Temp. & Pressure Sensor – YES, in flow stream

Time per Measurement – 1-15 seconds

Sampling Mode – Instantaneous, Averaging

Averaging Function – Selectable; 3 to 20 Measurements

Gas Compatibility – non-corrosive, non-condensing

Flow Modes – Pressure or Suction

AC Adapter / Charger – 12 VDC

Battery System – Lithium (LiFePO4) (see Certifications below)

Battery Run Time – 3 hours max flow, 8 hours continuous use (min brightness)

Battery Charge Time – 12 VDC Adaptor 3 hr, USB 7 hrs (unit off)

Warranty – 24 Months (1 Year Battery)

Operating Temperature – 10-40° C (50-104° F)

Storage Temperature – 0-70° C (32-158° F)

Operating Humidity – 0-85% RH, non-condensing

Storage Humidity – 0-100% RH, non-condensing

Display – Color Graphic LCD, HMI Touch Screen

Data Port – RS-232 (for Pump interface), USB (for data)

Transportable Storage – SD Card

Protective Hard Shell Case – Carrying case for 1 to 3 Cells

Dimensions – (HxWxD) 6.6” x 9.2” x 3.2” (168 x 234 x 81mm)

Weight – Base: 2.8 lbs / 1,270 g, Low Flow Cell: 0.8 lbs / 363g, Std Flow Cell: 0.85 lbs / 385g, High Flow Cell 1 lb / 454g

Certifications – EN 61010-1, CE, RoHS and EMC Compliant. Internal battery approved for shipping and transport per UN/DOT 38.3 and IEC 62133-2 (2nd Edition)
