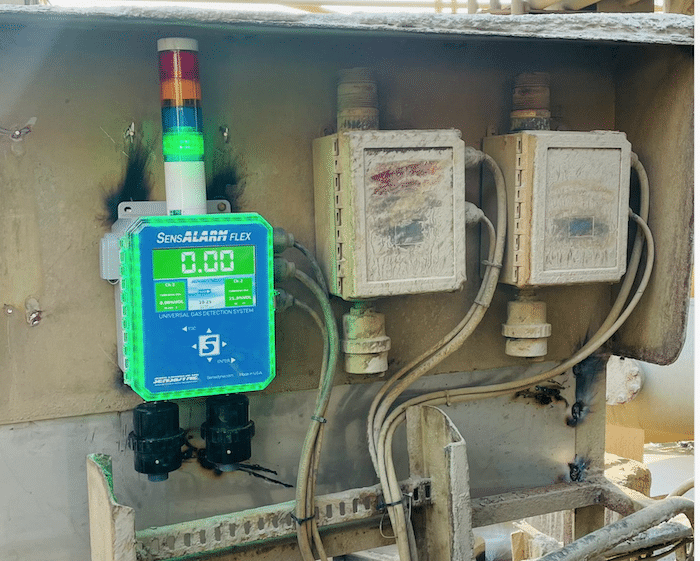

The SensAlarm FLEX is a fully-configurable, self-contained, all-in-1 gas detection solution designed for a wide range of applications – including Hazardous Areas. It offers a unique blend of flexibility, advanced features, and ease of use, making it ideal for industrial environments, laboratories, and other critical safety areas.
Sensidyne provides a fast lead time – compared to other manufacturers!
(LED light stack for General Purpose usage only, not HazLoc)

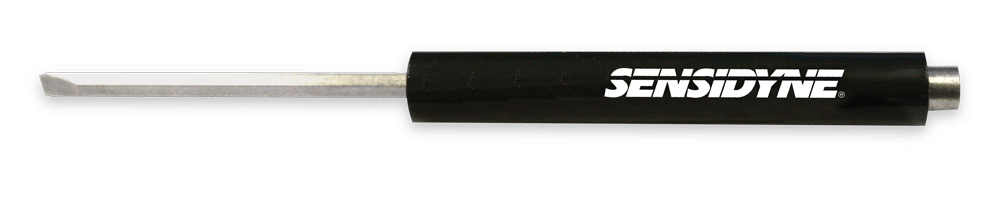

Utilizing the magnetic wand, SensAlarm Flex shares a non-intrusive interface with SensAlarm Plus, SensAlert ASI, and SensAir, which provides user access to setup, data review, and maintenance menus without opening the enclosure and declassifying the area. Menus are intuitive and provide general instructions for calibration and testing.
Reach out to Our Expert Team for Tailored Safety Solutions and Technical Guidance.
SENSORS
Gas – All Sensidyne Plus Series sensors
ToD – Test-On-Demand available for specific toxic sensors
ELECTRICAL
Design – Microprocessor based with nonvolatile memory. Automatically resumes operation after power failure
Power – 100-240 VAC, 50/60 Hz or 20-30 VDC
Battery – Optional battery back-up available
Outputs – 4-20 mA into 600 ohms; Standard Modbus RS-485 RTU or Ethernet TCP
Light Stack – (General Purpose usage only) NEMA 4X, optional up to 4 strobes with red, amber, blue, and green strobes
Horn – 95 dB piezo horn
Relays – 4 standard SPDT configurable relays. Optional 4 more SPDT configurable relays. Contact ratings: 6 amps at 120 VAC or 28 VDC resistive, 3 amps at 240 VAC resistive.
ENCLOSURE
Material – Polycarbonate
Environment – NEMA 4X design
Type – Wall mount with tabs
Overall Size – W x H x D: 8 x 10 x 6 in. / 20.3 x 25.4 x 15.24 cm
Weight Range – 12.25-24.17 lbs / 4.57-9.02 kg (with 1-2 sensor heads)
Conduit – 3/4 inch NPT connector supplied (side).
Temp: -4° to 122°F / -20° to 50°C
Humidity – 0-90 %RH, non-condensing.
Location – Indoor or Outdoor
Sensor Head – Enclosure and retaining ring are black anodized aluminum, PVC, or 316 stainless steel; splash guard and most other accessories are made of PVC.
DISPLAYS & CONTROLS
Display – 7 in. / 17.8 cm color LCD
Security – Password Protected Configuration Menu
Auto Config – System automatically senses the presence of optional modules and features
Reset/silence – External push button switch for acknowledge (Alarm sequence 3A)
Annunciators – Audible (+95dB) & Visual single strobe with optional second strobe
APPROVAL RATINGS
Display:
Flame proof, Non-Incendive (Enclosed Break)
ATEX II 3 [1] G Ex ic nA nC [ia Ga] IIC T4 Gc
NEC and CEC Class I Div 2, Groups A, B, C, D;
Class II Div 2 Grps E, F, G; Class III T4
Sensor Interface:
Intrinsic Safety
ATEX Ex ia IIC Ga T4
NEC and CEC Class I Div 1, Grps A, B, C, D;
Class II Div 1 Grps E, F, G; Class III T4
IECEx
II 3 [1] G Ex ic nA nC [ia Ga] IIC T4 Gc
Zone 2: Display, Zone 0: Sensor Interface
CE Mark
ATEX Directive 94/9/EC
TUV
CSA C22.2 No. 61010-1:2012/U3:2023-06
Remote Cal Adapter UL 61010-1:2012/R:2023-06
An all-in-one fixed gas detection system is a complete, ready-to-install solution that combines all safety critical components into a single unit.
With SensAlarm Flex, that includes:
Instead of designing and assembling a system from multiple vendors, everything is pre-integrated, tested, and ready to deploy in one enclosure.
Traditional systems are typically built from separate components:
SensAlarm Flex consolidates those into one platform, which:
It also adds intelligence not found in basic systems, like:
SensAlarm Flex supports a wide range of gas types using Sensidyne Plus Series sensors, including:
Supported sensor technologies include:
Because the platform auto-configures, changing gas types does not require reprogramming of the system.
SensAlarm Flex continuously monitors ambient air using connected gas sensors and triggers alarms when gas concentrations exceed user-configured limits.
Typical operation:
SensAlarm Flex provides flexibility in three key areas:
