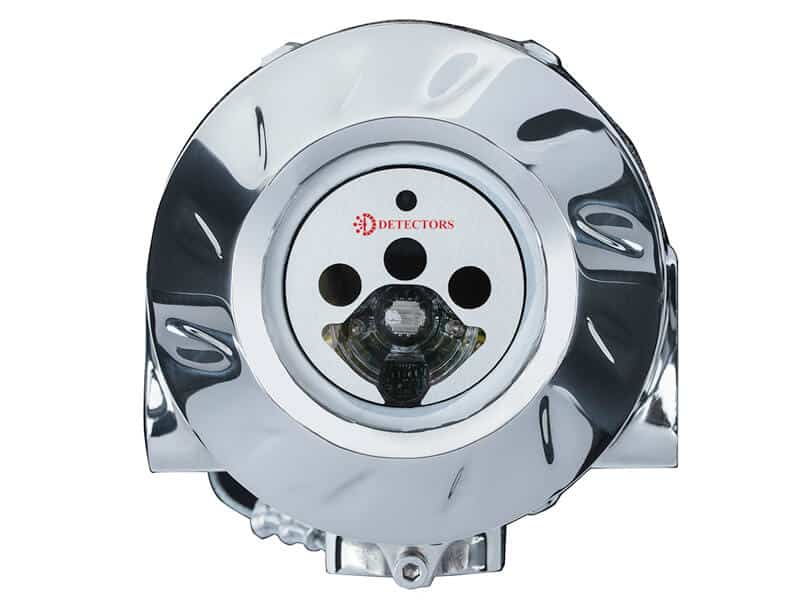

The Model D171 1IR+UV Multi -Spectrum Flame Detector is the most advanced optical flame detectors designed and optimized to respond to both Hydrocarbon based fires and non-Hydrocarbon based fires while rejecting False Alarm sources. The D171 model senses UV radiation in the Ultraviolet spectrum and infrared radiation in one discrete band of the IR spectrum for detecting fires. Flame response and false source rejection for the D171 model is accomplished by utilizing the Convolution Method and Advanced DSP (Digital Signal Processing) in conjunction with hard coded Algorithms identifying specific wavelengths of Energy. The Detector is able to respond to Hydrocarbon fires and non-Hydrocarbon fires at distances of 100+ feet, all this while rejecting false sources.
The D171 is a stand-alone fire & flame detector in a watertight NEMA 4X (IP66, 67) and explosion-proof Stainless-Steel enclosure designed for indoor/outdoor Class I, Div. 1 (Zone 1) Installations. The Detector is supplied with Alarm / Auxiliary / Fault relays, 0-20 mA analog and RS485 outputs. The detectors can store 200 events and 6 FireGraphs in its FRAM memory.
The Detectors Inc. Model D171 1IR+UV Multi -Spectrum Flame Detector is the most advanced optical flame detectors designed and optimized to respond to both Hydrocarbon based fires and non-Hydrocarbon based fires while rejecting False Alarm sources. The D171 model senses UV radiation in the Ultraviolet spectrum and infrared radiation in one discrete band of the IR spectrum for detecting fires. Flame response and false source rejection for the D171 model is accomplished by utilizing the Convolution Method and Advanced DSP (Digital Signal Processing) in conjunction with hard coded Algorithms identifying specific wavelengths of Energy. The Detector is able to respond to Hydrocarbon fires and non-Hydrocarbon fires at distances of 100+ feet, all this while rejecting false sources.
The D171 is a stand-alone fire & flame detector in a watertight NEMA 4X (IP66, 67) and explosion-proof Stainless-Steel enclosure designed for indoor/outdoor Class I, Div. 1 (Zone 1) Installations. The Detector is supplied with Alarm / Auxiliary / Fault relays, 0-20 mA analog and RS485 outputs. The detectors can store 200 events and 6 FireGraphs in its FRAM memory.
❖ Multi-Spectrum IR + UV design
❖ Detects Hydrocarbon and Non-Hydrocarbon fires with the highest false alarm immunity.
❖ Standard outputs: Alarm / Fault / Auxiliary relays, 0-20mA and RS485
❖ 200 event history log & 6 FireGraphs®
❖ Adjustable Time/Verification Delay up to 20 seconds.
❖ Automatic Self-Test checking electronic circuitry and Optical Path Integrity test with OptiRadar®
❖ 316 Stainless Steel explosion proof housing.
❖ Test Mode for manual testing
❖ Solar Blind
❖ Heater Option to avoid condensation and icing.
❖ High False Alarm immunity to external non-fire sources
❖ Manufactured in the USA with a 5-year warranty.
❖ RFI & EMC compliant
❖ Meets SIL 2 requirements

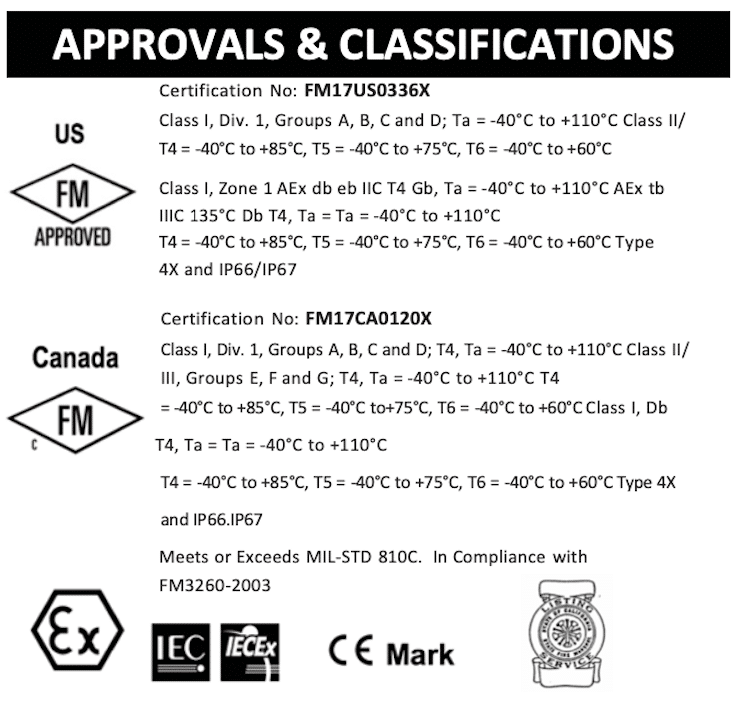

❖ FM/CFM/CSFM Approved
❖ NEMA 4 & 4x (IP66/67) Enclosure
❖ Airports & Aircraft Hangars
❖ Warehouse & Storage Facilities
❖ Manufacturing & Food Processing
❖ Diesel Generators & Fuel Storage
❖ Battery Rooms & Charging Facilities
❖ Oil & Gas Facilities
❖ Refineries & Cogeneration Plants
❖ Chemical & Hydrogen Plants
❖ Tank Farms
❖ Compressor Stations
❖ Paint Booths
❖ Paint & Solvent Storage Facilities
❖ Recycling Centers
❖ LPG / LNG Facilities
❖ Power Plants
❖ Marine Fuel Loading & Unloading
